SPA250DSP 250W Subwoofer Plate Amplifier with DSP

DSP functions include: 7 PEQs, LPF, phase, subsonic filt

$550.00
In Stock


Calculate Shipping

The Dayton Audio SPA250DSP digitally processed plate amplifier offers an elite level of control over your entire system (i.e. subwoofer and mains). This unique amplifier allows you to fine tune your system's low-frequency performance, and at the same time


Dayton Audio's SPA250DSP true 250 watt digital switching plate amplifier features advanced signal processing control that every audio enthusiast wants. This power and flexibility is accessible via PC-GUI software and our innovative single-knob LCD control panel.

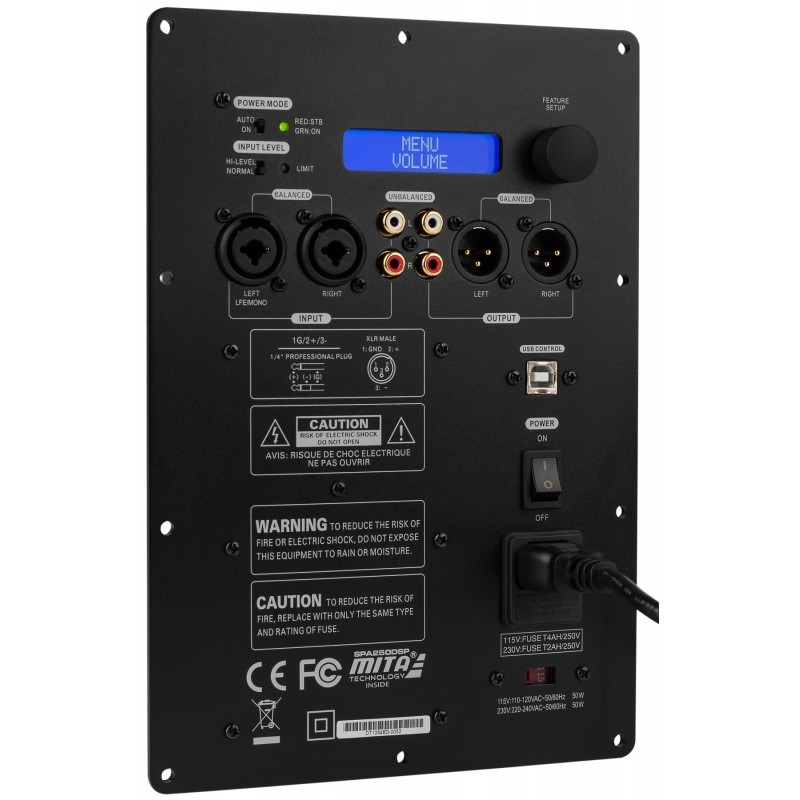

DSP Plate Amplifier Features



1. Power Mode: Select the either energy-saving or “always-on” power mode
• Auto: Amp goes into standby after no detected signal input for 20 minutes*
• On: Amp is always on, regardless of input signal status.
* Amp will automatically turn on typically in one second or less once audio signals are resumed.

2. Analog input attenuation: Affects analog balanced and unbalanced inputs only.
• Normal: No attenuation.
• Hi: Attenuates input signal by -6dB.

3. USB Control: Used for PC-GUI communication with custom PC software included with your amp.

4. Feature Control: Single knob digital actuator with single/double-click enabled with rotary scrolling to navigate the amp’s extensive feature menu.

5. Limiter LED: Lit when Limiter is active (Red).

6. Standby/On LED:
• Red when amp is in energy saving “stand by” state.
• Green when amp is operating normally.

DSP Processing Block Diagram



Controlling your Subwoofer via PC GUI



Volume/Phase

USB link indicator: When the communication via USB with amp is successful, the GUI’s LED indicator will light green. Otherwise, LED stays red.
Processing Selection: Navigate across the DSP menu to adjust various DSP parameters.
Sub in/out monitor: Monitor the input signal and sub output signal levels.
Tools Drop Down Menu: Utilities for amp DSP management.
Volume: Adjust the level (gain) of the subwoofer output.
Phase: Continuously adjustable phase from 0° to 180°.

Low Pass and Subsonic Filters



Filter ON/OFF Button: Enable or disable the selected filter.
Slope: Select roll-off gradient of the selected filter: -12dB/-24dB per octave.
Frequency (Hz): Adjust cut-off frequency of the selected filter

5-Band Parametric Equalizer



PEQ Window: Graphical trace is NRT editable. Bands can be shaped by cursor or direct input and/or
sliders
5 Band-digital PEQ adjustments:

a) Band On/Off: Bypass or enable by clicking the colorized 1~5 buttons
b) Center Frequency (CF): Adjust Center Frequency of each EQ band, 10~200Hz, steps: 1Hz.
c) Gain: Adjust the EQ gain (apparent volume), -12 ~ +6dB, steps: 0.1dB
d) Q (EQ width): Adjust the “Q” value, 0.4~16 , step: 0.1



Dual-Band Limiter



a) Threshold: Adjust the limiter threshold, 0~-12dB, step: 0.1dB
b) Attack: Adjust limiter’s “attack time”. This controls the time taken to attenuate signals over the
threshold to the specified threshold level. Range: 1/5/10/20/100ms
c) Release: Adjust limiter's “release time”. When signal is below threshold level, this controls the
time taken to restore back to original level. Range: 60/120/240/480/1000/2000ms
d) Frequency: The crossover frequency point between the 2 bands: Band 1 (Low Frequency) &
Band 2 (High Frequency).

High Frequency Out



This block controls the DSP parameters for line level output only.
Delay: Adjust the time difference between High Frequency out and Subwoofer out.
HPF Control:

Filter ON/OFF: Bypass or Enable the selected filter.
Slope: Select roll-off gradient of the selected filter: -12dB/-24dB per octave.
Frequency: Adjust cut-off frequency of the selected filter.



Specifications: • Power output: 250 watts RMS into 4 ohms, THD+N <0.1% • Signal to noise ratio: 97.9 dB (A-weighted) • Power requirements: 110~120/220~240 VAC selectable, 50/60 Hz • Amplifier dimensions: 10.25" H x 7.25" W x 2.125" D; Amplifier cutout: 9.25" H x 6.25" W.



(848791004049)

• DSP functions include: 7 PEQs, LPF, phase, subsonic filter, limiter, mains delay, and HPF
• Single-knob control panel with high-contrast LCD display and status LEDs
• Fast, intuitive PC-based GUI software enables full access to the DSP functions
• Efficient Class D output topology ensures high-impact low frequency performance


Model Number SPA250DSP
Color Black
Unit of Measure Each
UPC 848791004049
Warranty - Parts 5 Years
Warranty - Labor 5 Years
Product Height 7
Product Width 11
Product Length 16
Product Depth --
Product Weight --
Product Shipping Weight (lbs.) 3.7000
SKU 848791004049
Model # SPA250DSP
Barcode # 848791004049
Brand Dayton Audio
Shipping Weight 4.6410kg
Shipping Width 0.279m
Shipping Height 0.178m
Shipping Length 0.406m
Shipping Cubic 0.020189000m3
