DC160-8 - 6½" CLASSIC PAPER CONE WOOFER

6½" Classic Woofer 8 Ohm

$75.00
In Stock


Calculate Shipping


Choose the Dayton Audio Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

The 6-1/2" woofer features a non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate. Economical and excellent low frequency performance.

  • 6½” woofer can function as a woofer, mid-bass, or a small subwoofer.
  • Treated paper cone provides smooth response and reduced cone breakup.
  • Rubber surround, aluminium voice coil, and extended bump plate.

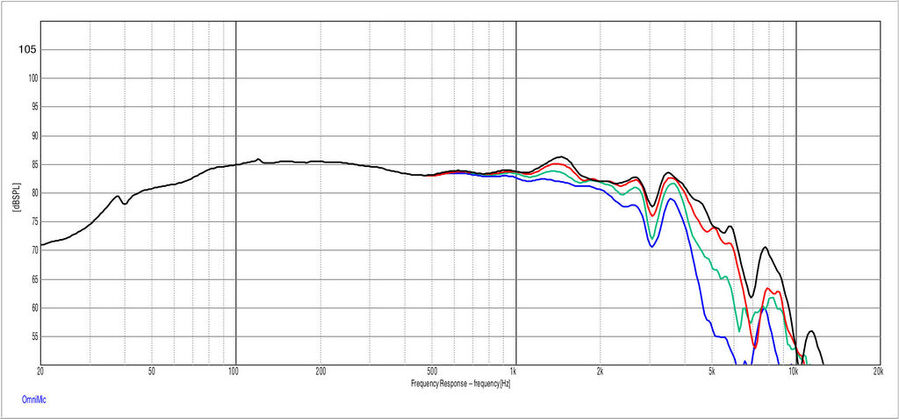

  • Smooth frequency response up to 2 kHz and great bass response.
  • Large diameter flat spider and good Xmax for clean bass.

(DC160-8)

Description 6½" Classic Woofer 8 Ohm
Cms 0.68mm/N
Coil 35.5mmØ
Depth 77.2mm
Diam. 165mmØ
Fs 35.7Hz
Impedance 8Ω Re 6.6Ω
Impedance (Ohm) 8 ohm
Inch 6.5
Le 2.26mH
Manufacturer Dayton Audio
Mms 29.3g
Power 50W
Power (RMS) 0-50 Watt
Price Type each
Prms 50W
Qes 0.38
Qms 3.46
Qts 0.34
QTY 1
Re 6.6Ω
Sd 134.8cm²
Sens. 86.1dB
Series Classic
Size 6.5'
Type Woofer
Vas 17.9L
Zn
Hole 145mmØ
eBook View Dayton Audio USA Brochure
SKU DC160-8
Model # DC160-8
Barcode # DC160-8
Brand Dayton Audio
Shipping Weight 1.4800kg
Shipping Width 0.170m
Shipping Height 0.090m
Shipping Length 0.170m
Shipping Cubic 0.002601000m3
