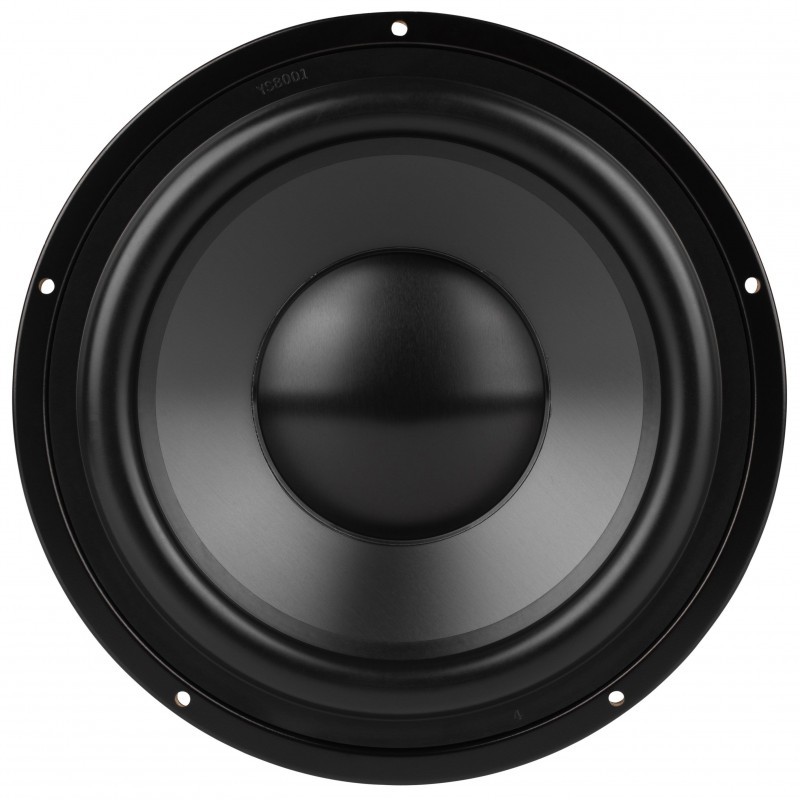

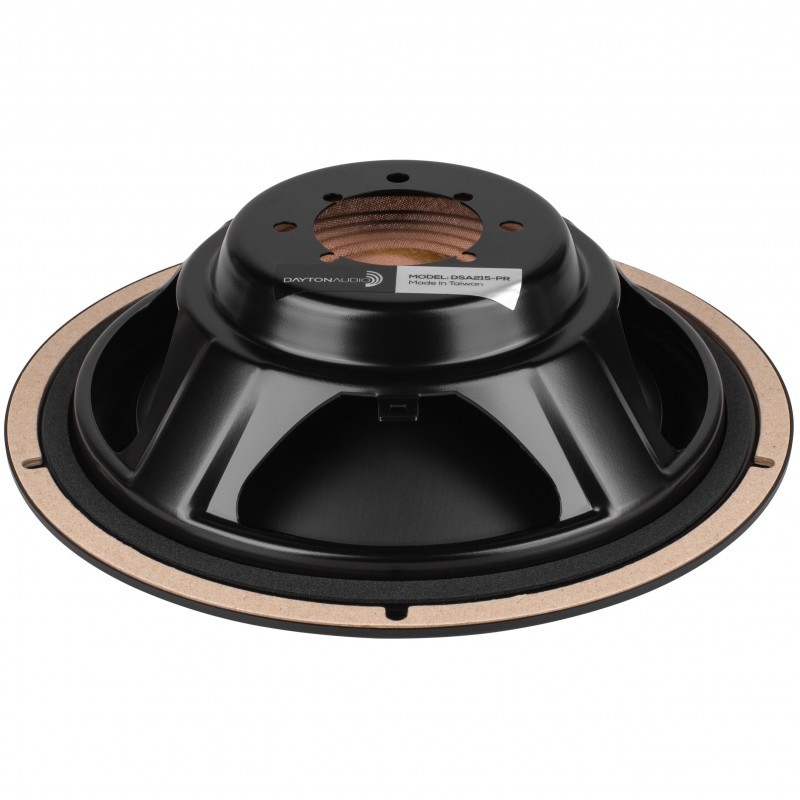

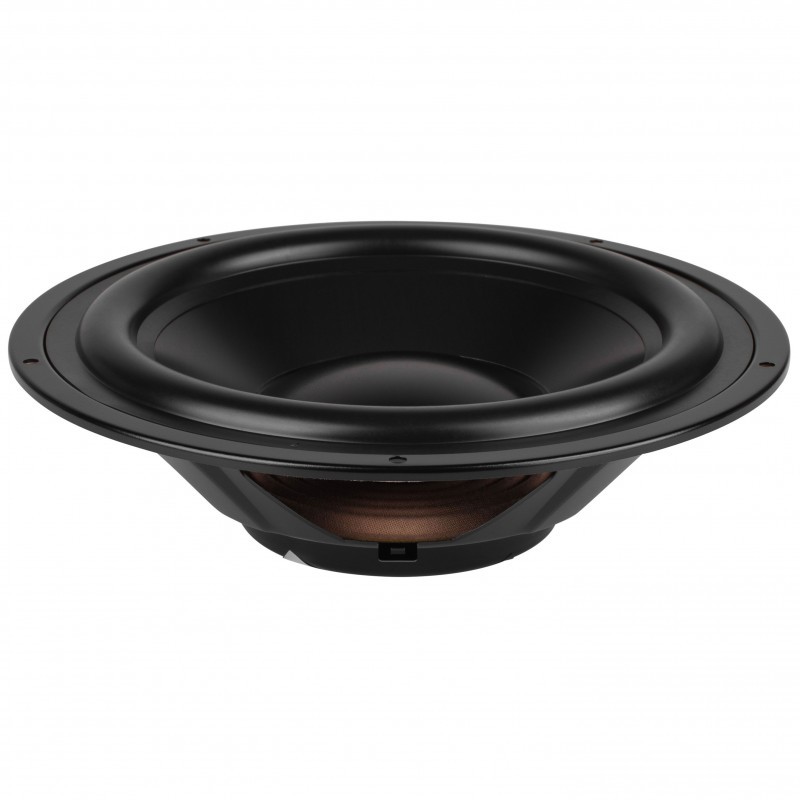

DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator
Perfect match for Dayton Audio's aluminum cone Designer
Notify me when back in stock
The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to compact subwoofer systems.
Specifications: • Fs: 25.6 Hz • Vas: 27.1 liters • Qms: 7.66 • Cms: 0.58 mm/N • Rms: 1.4 kg/s • Mms: 67 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 175.51 mm, Cutout diameter: 144.02 mm, Depth: 46.99 mm.
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd
(848791005060)
• Perfect match for Dayton Audio's aluminum cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports
• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted
| Speaker Series | Designer Series |
|---|---|
| Model Number | DSA215-PR |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791005060 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.1500 |
| Speaker Type | Passive Radiator |
| Nominal Diameter | 8" |
| Power Handling (max) | -- |
| Continuous Program Power | -- |
| Sensitivity | -- |
| Frequency Response | -- |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | -- |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | 25.6 Hz |
| Mechanical Q (Qms) | 7.66 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | -- |
| Diaphragm Mass Inc. Airload (Mms) | 67g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.58 mm/N |
| Surface Area Of Cone (Sd) | 211.2 cm² |
| Volume of Displacement (Vd) | 232.4 cm³ |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | 36.7 liters |
| Maximum Linear Excursion (Xmax) | 11 mm |
| Driver's Mechanical Losses (Rms) | 1.4 kg/s |
| Cone / Diaphragm Material | Aluminum Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | Steel |
| Magnet Material | -- |
| Overall Outside Diameter | 215.9 mm |
| Overall Depth | 58.42 mm |
| Baffle Cutout Diameter | 178.05 mm |
| # Mounting Holes | 5 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | 205.99 mm |
| Product Weight | -- |
| SKU | 848791005060 |
| Model # | DSA215-PR |
| Shipping Weight | 0.9280kg |
