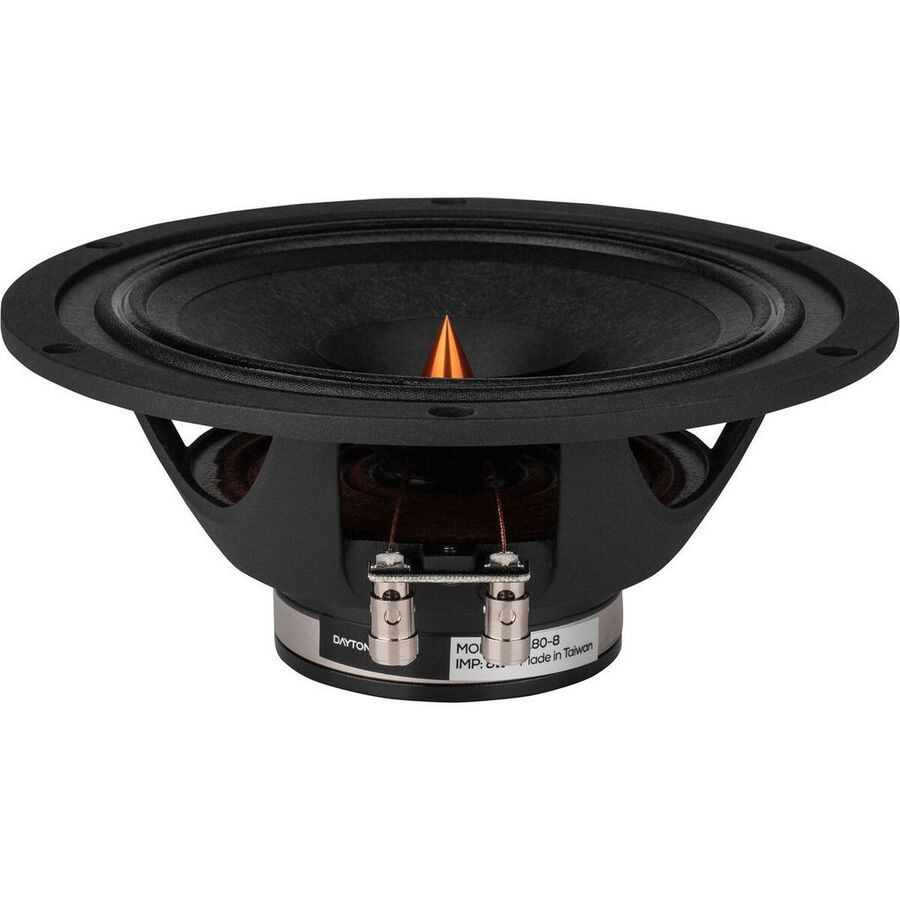

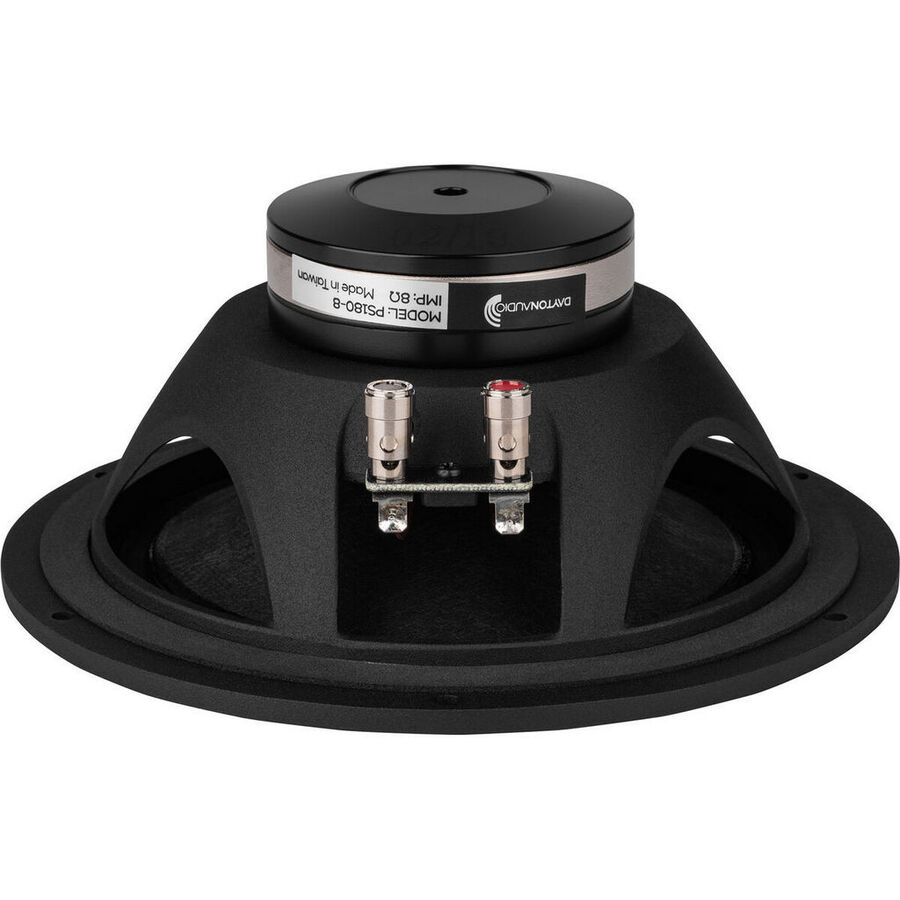

PS180-8 - 6½" POINT SOURCE FULL-RANGE DRIVER
20KHZ WHIZZER CONE COPPER PHASE PLUG
Notify me when back in stock
The PS180-8 point source full range driver offers high sensitivity, minimal distortion, true bass, articulate midrange, and balanced, extended highs. It has been extensively tested to give smooth response, both on- and off-axis.
Dayton Audio 6½" point source full-range neo driver offers true bass, articulate midrange, and balanced, extended highs. With high sensitivity and smooth response, it is ideal for lower-powered Class A and Class T designs. The driver offers superb resolution and natural sound quality, making it suitable for various applications. The speakers also look great in dipole and open-back designs.
- High sensitivity/minimal distortion, ideal for lower powered amplifiers
- Whizzer cone and phase plug extend on-axis and off-axis response
- Solid bass performance from high excursion capability (4.6mm Xmax)
- Optimised neodymium magnet provides high motor strength
- Low-mass copper clad aluminium voice coil
- Copper cap and ring on pole piece reduce inductance and distortion
- Lightweight, rigid and well controlled Kevlar reinforced paper cone
(PS180-8)
| Description | 6½" Point Source Full-Range Neo Driver |
|---|---|
| Cms | 1.05mm/N |
| Coil | 25.4 mmØ |
| Colour | Black |

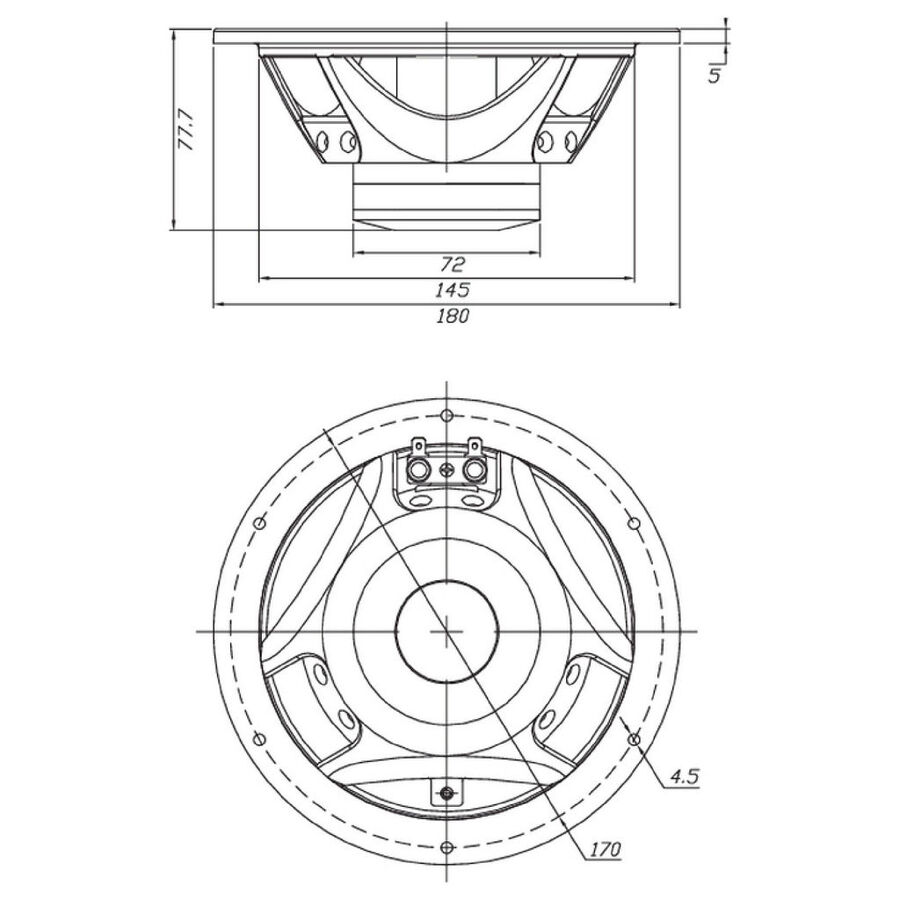

| Depth | 77.7mm |
| Diam. | 180mmØ |
| Fs | 58.5Hz |
| Impedance | 8Ω Re 6.4Ω |
| Impedance (Ohm) | 8 ohm |
| Inch | 6.5 |
| Le | 0.63mH |
| Manufacturer | Dayton Audio |
| Mms | 7g |
| Power | 30W |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 30W |
| Qes | 0.36 |
| Qms | 3.64 |
| Qts | 0.33 |
| QTY | 1 |
| Re | 6.4Ω |
| Sd | 132.7cm² |
| Sens. | 94.8dB |
| Series | Point Source |
| Size | 6.5' |
| Type | Full Range |
| Vas | 27.6L |
| Voice | Aluminium |
| Zn | 8Ω |
| Hole | 145mmØ |
| eBook | View Dayton Audio USA Brochure |
| SKU | PS180-8 |
| Barcode # | PS180-8 |
| Shipping Weight | 1.3000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.120m |
| Shipping Length | 0.190m |
| Shipping Cubic | 0.004332000m3 |
