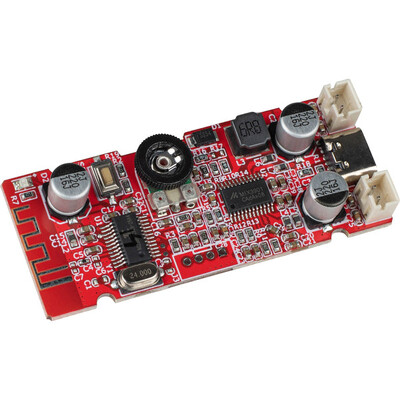

TBAB-26 2 x 6W TWS Pairing Bluetooth 5.0 Amplifier Board

Expand your wireless Bluetooth experience with TBAB-26

8 to 14 Days

Calculate Shipping

Expand your wireless Bluetooth experience with Dayton Audio TBAB-26 multi-pairing Bluetooth amplifier board. Use it as a single stereo HiFi Bluetooth 5.0 2 x 6W amplifier board, or add another board and pair them together for wireless left and right chann

One works great, but buy another one for the full stereo wireless experience


Bluetooth speakers work great because there's now wires running between your smartphone/tablet and the speaker. One problem is stereo separation. Some Bluetooth speakers have an additional speaker, but you must run a wire between the two speakers to get quality stereo separation in a room. The Dayton Audio TBAB boards solve this problem. Build two portable Bluetooth speakers with them and set them up to 30 ft. apart. Pair the master board/speaker with your iPhone. Pair the master with the slave and enjoy left and right stereo sound between the two boards/speakers. Some Android devices have a media output function that enables you to have two Bluetooth boards/speakers paired at the same time. With this option two masters and two slaves pair together for even more Bluetooth wireless options. The unused speaker outputs on each board continue to work as their designated channel if you choose to hook a speaker up to it.


Type alt text here

Pairing Two Boards Together

 1. Pair one board to your phone and play music through the board. This will be the master board.

 2. Press and hold down the button on the master board until it beeps.

 3. Press and hold down the button on the second board until you here a chime tune. This will be the slave board. Wait a few seconds and you'll hear your music playing through both boards.

 4. These boards will stay paired until you press and hold down the button on the slave board to free it from the master board.



Specifications: • Power input: 4.5~5.5 VDC • Power output: 2 x 6W @ 4 ohms • Minimum Impedance: 4 ohms Frequency response: 20 to 20K Hz (±3 dB) • Switching frequency: 420K Hz • Dimensions: 2.37" x 1" x 0.38" (60 x 25.36 x 9.6 mm).


Pairs with other Dayton Audio TBAB-26 boards to expand the Bluetooth wireless experience
Volume control for setting maximum output for a variety of speakers
USB-C port enables it to be powered by any 5 VDC/USB source
Bluetooth 5.0 for maximum wireless range
Small 2.37" x 1" x 0.38" (60 x 25.36 x 9.6 mm) size fits in almost any enclosure

Board Type:    2 Channel Stereo Amp
Power (RMS/Channel 8 ohms):    0 - 25 Watts
Special Features:    Bluetooth

SKU 23787
Barcode # 848791008009
Brand Dayton Audio
Shipping Weight 0.0250kg
