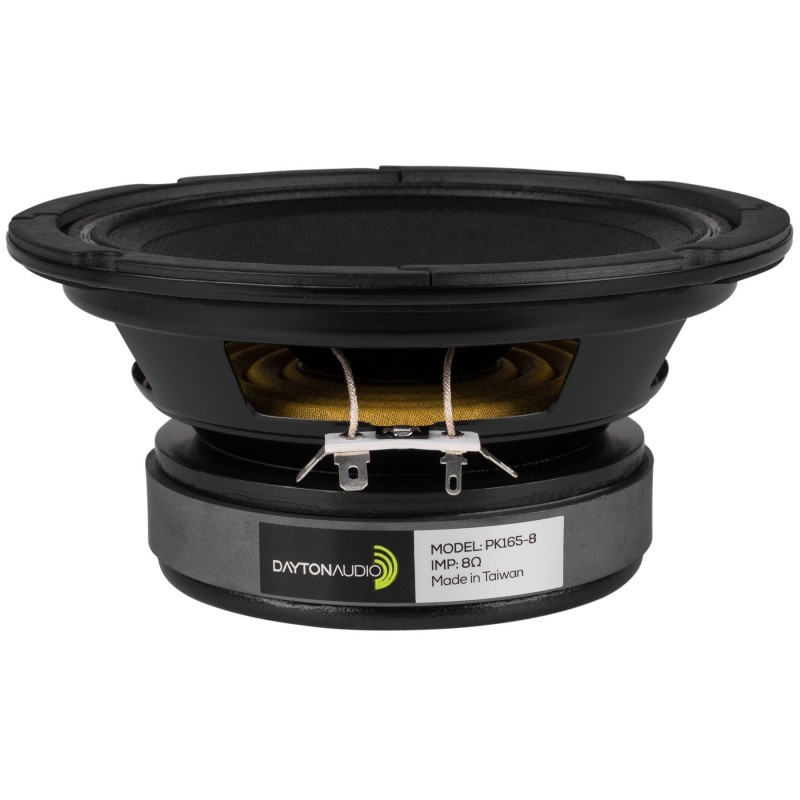

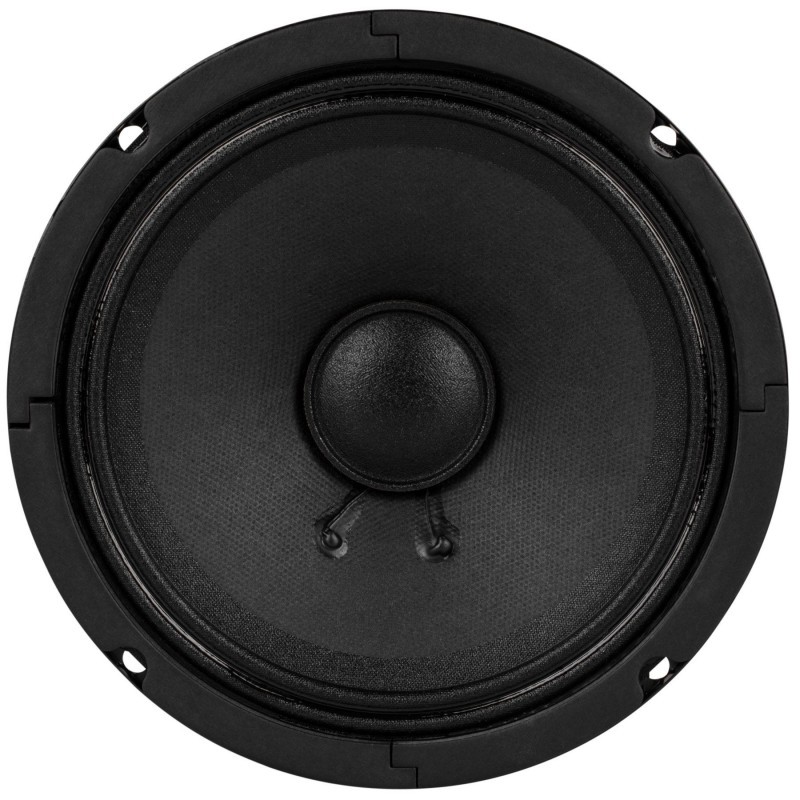

PK165-8 6" Professional Kevlar/Paper Cone Midrange 8 Ohm
High output, low distortion
$99.50
In Stock
Notify me when back in stock
Dayton Audio's PK165-8 provides high output, extended frequency response, and low distortionperfect for use in compact full range applications as well as a separate component in multi-way speaker systems. The PK165-8 features a steel frame, Kevlar-impregnated paper cone, treated cloth surround, vented pole piece, and a 1-1/2" aluminum voice coil wound on a polyimide former.
OPTIMUM CABINET SIZE *
Sealed Volume 0.26 ft.³
Sealed F3 138 Hz
Vented Volume 0.66 ft.³
Vented F3 67 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632070716)
• High output, low distortion
• Extended frequency response
• Kevlar-impregnated paper cone
• Vented pole piece
• 1-1/2" aluminum voice coil
• Extended frequency response
• Kevlar-impregnated paper cone
• Vented pole piece
• 1-1/2" aluminum voice coil
| Speaker Series | Pro Audio Series |
|---|---|
| Model Number | PK165-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632070716 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 4.2000 |
| Speaker Type | Midrange |
| Nominal Diameter | 6" |
| Power Handling (RMS) | 100 watts |
| Power Handling (max) | 200 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 91.4 dB @ 2.83V/1m |
| Frequency Response | 95 - 9,000 Hz |
| Voice Coil Diameter | 38 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 6.8 ohms |
| Voice Coil Inductance (Le) | 0.81 mH |
| Resonant Frequency (Fs) | 91.5 Hz |
| Mechanical Q (Qms) | 7.93 |
| Electromagnetic Q (Qes) | 0.77 |
| Total Q (Qts) | 0.70 |
| Diaphragm Mass Inc. Airload (Mms) | 10g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| Surface Area Of Cone (Sd) | 113.1 cm² |
| Volume of Displacement (Vd) | 17.0 cm³ |
| BL Product (BL) | 7.18 Tm |
| Compliance Equivalent Volume (Vas) | 7.69 liters |
| Maximum Linear Excursion (Xmax) | 1.5 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Cloth |
| Voice Coil Wire Material | Aluminum |
| Voice Coil Former | Kapton® / Polyimide |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 165 mm |
| Overall Depth | 75.2 mm |
| Baffle Cutout Diameter | 144.6 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632070716 |
| Model # | PK165-8 |
| Barcode # | 844632070716 |
| Brand | Dayton Audio |
| Shipping Weight | 1.8550kg |
| Shipping Width | 0.184m |
| Shipping Height | 0.102m |
| Shipping Length | 0.184m |
| Shipping Cubic | 0.003445000m3 |
| Assembled Length | 0.184m |
| Assembled Height | 0.102m |
| Assembled Width | 0.184m |
